Aug 29,2024
Imagine a world where your car sputtered to a halt, your washing machine groaned in protest, and your printer jammed – all because of a tiny, worn-out component. That's the power (or lack thereof) of bearing bushings. These unsung heroes keep our machines whizzing, whirring, and spinning smoothly. But what exactly are they, and why are they so crucial? Buckle up because we're diving deep into the fascinating world of bearing bushings!
Think of a bearing bushing as a supportive sleeve that fits snugly around a rotating shaft. It acts like a silent mediator, reducing friction between the shaft and its housing. This keeps things moving smoothly, preventing wear and tear on both parts. Imagine the satisfying whir of a well-oiled machine – the sound of a bushing doing its job!
Here's a closer look at the different types of bearing bushings, each with its strengths:
These are the most straightforward and most versatile bushings. Imagine a smooth, cylindrical tube made from metal, plastic, or composite materials. They're perfect for low-load applications where affordability and ease of use are essential. Think of the simple hinge on your laptop lid—it might use plain bushing for smooth opening and closing.
Picture a plain bushing with a fatter midsection. This wider area provides additional support and is ideal for applications with slightly higher loads. Imagine the sturdy bushing in a clothes dryer, where the shaft spins with more weight and force.

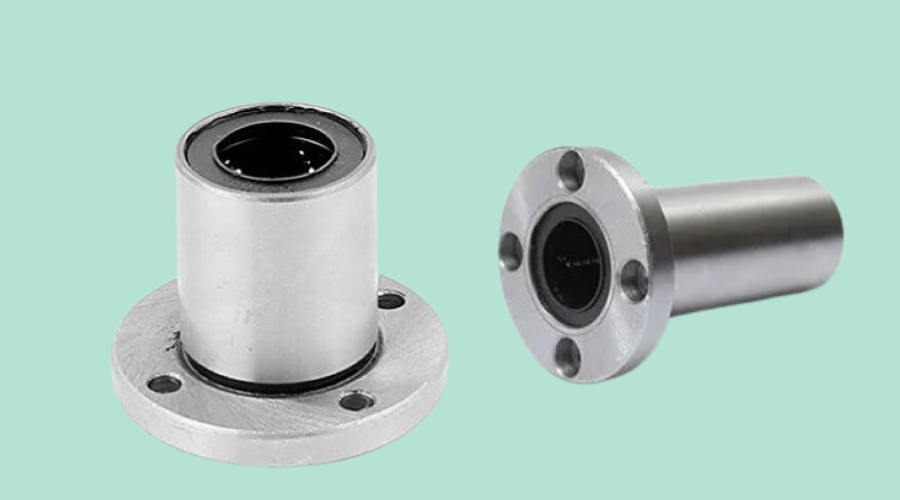

Imagine a sleeve bushing with a built-in collar on one end. This flange acts like a stopper, preventing the shaft from moving axially (in and out). It is perfect for situations where you must control rotational and axial movement. Please think of the stabilizing bushing in a bicycle wheel, keeping it centered and preventing wobbling.
Bearing bushings are incredibly versatile and can be found in various industries, keeping countless machines running smoothly. Here are a few examples:
From the suspension system that absorbs bumps to the engine components that spin at high speeds, bushings play a vital role in keeping your car running smoothly.
Bushings are everywhere in factories—on conveyor belts that transport materials, in robots that perform intricate tasks, and in various machinery parts that grind, press, and cut.
From the hinges on your laptop to the knobs on your stereo, bushings ensure smooth operation. Imagine the precise clicks and turns of your volume knob – that might be a tiny bushing in action.
Even in an airplane's demanding environment, bushings help critical components function flawlessly. They can withstand high temperatures and intense vibrations in landing gear, control surfaces, and other essential parts.
When designing or maintaining machinery, selecting the right components prepares the base for optimal performance and longevity. Bushings and bearings are two common mechanical elements that support rotating shafts and reduce friction. While both serve similar purposes, they have distinct characteristics and applications. In this article, we'll explore the advantages of using bushings over bearings in specific scenarios.
One of the most significant advantages of using bushings over bearings is their lower cost. Bushings typically have a more straightforward design and require fewer components, making them more economical to manufacture and purchase. This is usually beneficial in applications where cost is a significant factor.
Simplicity and Ease of Installation:
Bushings are generally easier to install than bearings. They have a more straightforward design and require fewer components, reducing the complexity of installation and maintenance procedures. Additionally, bushings often have a longer lifespan due to their more straightforward design and reduced wear and tear.
Bushings are excellent at absorbing vibrations and shock loads, which can help reduce noise and extend the life of the surrounding components. This is particularly beneficial in applications where machinery is subjected to harsh operating conditions.
Certain bushing materials, such as bronze or brass, are naturally corrosion-resistant, making them suitable for applications in harsh environments. This can be particularly important in industries such as marine, chemical processing, and outdoor equipment, where exposure to corrosive elements is a concern.
Bushings can be compact, making them ideal for applications with limited space. This allows for sleeker designs and more efficient machinery packaging.
1. How long do bearing bushings last?
The lifespan of a bushing depends on factors like the material it's made from, the load it supports, and the operating environment. However, with proper use and maintenance, bushings can last very long.
2. Can I replace a bearing with a bushing?
Sometimes, yes! If the load is low and space is limited, a bushing can replace a bearing. However, consulting a professional engineer is crucial to ensure the bushing can handle the specific application.
3. What key factors should you evaluate when selecting a bearing bushing?
Material, load capacity, operating temperature, and shaft alignment are all crucial factors when selecting the correct bushing for your needs.
Material: Different materials offer various advantages. Metal bushings are solid and durable, ideal for high-load applications. Plastic bushings are lightweight and corrosion-resistant, making them suitable for moist environments. Composite bushings combine the benefits of different materials for specific needs.
Load Capacity: Choose a bushing that can handle the expected load without wearing out prematurely. Consider both static (constant) and dynamic (varying) loads.
Operating Temperature: Some materials, like certain plastics, can melt or deform at high temperatures. Ensure the bushing can withstand the operating environment.
Shaft Alignment: Misaligned shafts can cause premature wear on bushings. Choose a bushing that accommodates misalignment or implement design features to ensure proper shaft alignment.
Bearing bushings may not be the flashiest components, but they are vital in keeping our world moving. From the cars that take us places to the computers that connect us, they ensure smooth operation and prevent costly breakdowns. So, the next time you hear a machine whirring to life, remember the silent heroes within – the remarkable bearing bushings! They may be small, but their contribution is undeniable. With their versatility, affordability, and low-maintenance nature, bearing bushings will keep machines running smoothly for years.
